PIC to Motor Mind B

This library provides you with a set of functions to interface a PIC 16C84 to a Motor Mind B module from Solutions Cubed. I wanted to provide a simple and clean way to interface a number of MMB modules to a PIC for my PIC Robot. Instead of writing one-off code, I decided to build a reuseable library of code. Motor Mind B

One of the interesting features of this library is that it can support any number of MMB modules. In my LCD library you have to define the port and pin the LCD is connected too. It will only support one LCD module, which is a limitation I was happy with. However, it is quite likely that you will have more than one MMB connected to your PIC - at least two are needed for a 2 wheeled robot! The library needed some extra work to generalise the code so that it could send serial commands over any pin and port.

Features of a Motor Mind B

Before we go interfacing to this module, let's examine what its functionality is:
  • Interfaces with a PIC using a 2-wire serial protocol. One wire transmits data to the MM from the PIC, and a second returns status information. The current version of the library only uses the send wire, so a one-wire serial interface is possible. The serial link operates at 2400 baud.
  • It can drive motors up to 30V at 3.5 amps. It is packaged with a large heat sink to disipate the heat involved in driving larger motors.
  • It provides speed control of motors. Speed control is achieved using Pulse Width Modulation (PWM). PWM allows you to control the speed of a motor by sending short pulses of current to it, rather than simply turning it on and off.
  • Motor direction control is provided, and a motor can be reversed.
  • You can drive the motors from a seperate power supply than that powering the logic side of the module. This is a very useful feature for reducing noise and brown outs on the logic power supply rails.
  • If the motor has a tachometer attached, it can return the current RPM of the motor.
  • In combination with the PWM feature, you can specify a speed you want the motor to remain at, and it will continually monitor the motor's speed and adjust the pulses to the motor to maintain the preset speed.
Phew! That's quite a feature set, and more than most people will need for initial experimentation.

Library functions provided

The following functions are provided by the library:
  • void mm_putc(char port, char pin, char c) Send the byte c to a Motor Mind B module connected to port and pin. The port parameter corresponds to the PORT location in the PIC's register file: PORTA is location 5, and PORTB is location 6. The pin parameter defines which bit of the specified port the MMB is attached to.
  • void mm_start(char port, char pin, char dutycycle) Start the motor attached to port and pin. Set the dutycycle (speed) of the motor.
  • void mm_stop(char port, char pin) Stop the motor attached to port and pin.
  • void mm_reverse(char port, char pin) Reverse the direction of the motor attached to the specified port and pin.
It's a pretty limited set of commands right now, but I will add more over time.

Library Source Code

You can download the library, and the example source code I describe further on below.
  • motor.c C source code for the library.
  • motor.lib library file.

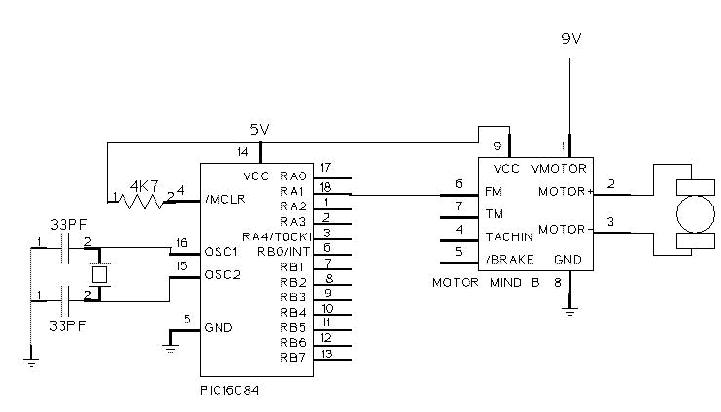

  • mmtest.jpg schematic of wiring the Motor Mind B to the PIC.
  • mmtest1.c test source code to turn motor on and off only (also available as a hex file to download into the PIC).
  • mmtest2.c test source code to reverse motor direction(also available as a hex file to download into the PIC).
  • mmtest3.c test source code to run motor continualy, but slow it down over time (also available as a hex file to download into the PIC).

Example 1 - Turn the motor on and off

In this first test, we will just turn the motor on and off continually. This verifies that the serial link is working correctly, and the motor is receiving power.

/*
 * mmtest1.c
 *
 * Motor Mind Driver library Test
 *
 * Test one: turn the motor on and off
 *
 * Motor Mind module is conected to PORTA
 * FM pin on MM is connected to  RA1 pin 18
 * LED on RB4 via 1K resistor
 *
 * Mark Crosbie 10/31/98  mark@mastincrosbie.com
 */

#define MOTOR 0x5
#define MMPIN 1
#define LED 4

void main(void) {

  set_bit(STATUS, RP0);    /* select the register bank 1 */
  clear_bit(TRISA, MMPIN);  /* Port A.1 is output to motor */
  clear_bit(TRISB, LED);   /* Port RB.4 is output LED*/
  clear_bit(STATUS, RP0);

  while(1) {

    /* start the motor at half speed */
    mm_start(MOTOR, MMPIN, 128);

    delay_s(2);

    /* stop it */
    mm_stop(MOTOR, MMPIN);

    /* flash the LED once */
    set_bit(PORTB, LED);
    delay_s(1);

    clear_bit(PORTB, LED);
    delay_s(1);

  }
}
An LED is connected to PORTB pin 4 which is flashed each time through the loop. The speed of the motor is set to half: the parameter dutycycle to mm_start() can range from 0 to 255, with 0 effectively turning off the motor and 255 running it full speed ahead. A setting of 128 chooses a half-speed setting.

Example 2 - Test reversing the motor direction

Building upon the previous example, we will test the reverse command. It is safer to STOP the motor before reversing it: if you reverse a running motor a large back-emf current is generated. This current spike could damage the Motor Mind B module!
/*
 * mmtest2.c
 *
 * Test two: turn on the motor, let it run for 2 seconds,
 * reverse direction, flash LED and then turn the
 * motor on again
 *
 * NOTE: It is safer to stop the motor before reversing its
 * direction. If you don't then a potentially large back-EMF current
 * from the motor could destroy the PIC or the Motor Mind B module
 *
 * Motor Mind module is conected to PORTA
 * FM pin on MM is connected to  RA1 pin 18
 * LED on RB4 via 1K resistor
 *
 * Mark Crosbie 10/31/98
 */

#define MOTOR 0x5
#define MMPIN 1
#define LED 4

void main(void) {

  set_bit(STATUS, RP0);    /* select the register bank 1 */
  clear_bit(TRISA, MMPIN);  /* Port A.1 is output */
  clear_bit(TRISB, LED);   /* Port RB.4 is output */
  clear_bit(STATUS, RP0);

  while(1) {

    /* start the motor at half speed */
    mm_start(MOTOR, MMPIN, 128);

    delay_s(2);

    /* stop the motor */
    mm_stop(MOTOR, MMPIN);

    /* reverse direction */
    mm_reverse(MOTOR, MMPIN);

    /* flash LED */
    set_bit(PORTB, LED);
    delay_s(1);

    clear_bit(PORTB, LED);
    delay_s(1);

  }
}
